Equipped with sharp drill tips and self-tapping capabilities, save installation time and effort. They are used in various applications such as construction, metal and wood, metal-to-metal fastening, outdoor structures, electrical installations, and more.
Applications

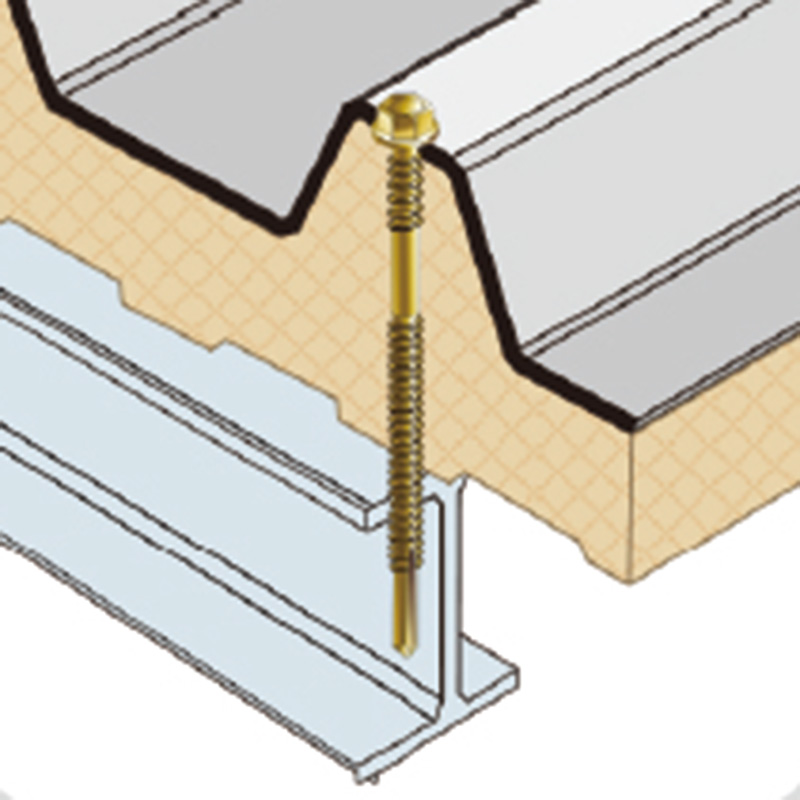

Roof and wall panel over rigid insulation to steel framingFeatures
Double thread for the purpose using exterior roofing environment| Double Thread Self Drilling Screw | ||||
| Size | Length / inch | Length / mm | Drill Point m/m | Drill Capacity m/m |
| #14-14/#12-24 M6.3/ M5.5 |
2-3/8" | 60 | #5 | 12.0 |
| 3-5/32" | 80 | #5 | 12.0 | |
| 4" | 100 | #5 | 12.0 | |
| 5" | 125 | #5 | 12.0 | |
| 6" | 150 | #5 | 12.0 | |
| #14-14/#14-14 M6.3/ M6..3 |
2-3/8" | 60 | #5 | 12.0 |
| 3-5/32" | 80 | #5 | 12.0 | |
| 4" | 100 | #5 | 12.0 | |
| 5" | 125 | #5 | 12.0 | |
| 6" | 150 | #5 | 12.0 | |
| 7" | 175 | #5 | 12.0 | |
| 8" | 200 | #5 | 12.0 | |
| 10" | 250 | #5 | 12.0 | |
| 11" | 275 | #5 | 12.0 | |
