The bugle head ensures a smooth surface after installation, reducing the risk of surface snagging or jamming. The Phillips allows for convenient installation, and when combined with self-tapping threads, it ensures a secure and tight lock after installation.
Applications

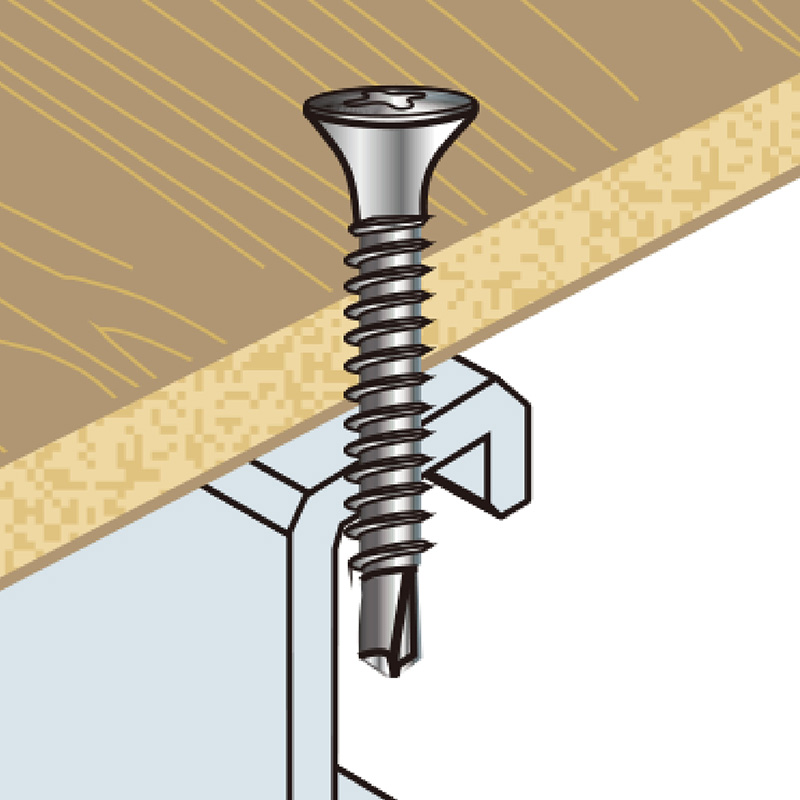

For using in stitch wood to metalFeatures
Precise cutting edges to improve drill performance with less effort| Bugle Head Self Drilling Screw | ||||
| Size | Length / inch | Length / mm | Drill Point m/m | Drill Capacity m/m |
| #6-20 M3.5 | 1" | 25 | #2 | 0.5-1.0 |
| 1-1/8" | 28 | #2 | 0.5-1.0 | |
| 1-1/4" | 32 | #2 | 0.5-1.0 | |
| 1-5/8" | 41 | #2 | 0.5-1.0 | |
| 2" | 50 | #2 | 0.5-1.0 | |
| #8-18 M4.2 | 1" | 25 | #2 | 1.0-2.0 |
| 1-1/4" | 32 | #2 | 1.0-2.0 | |
| 2" | 50 | #2 | 1.0-2.0 | |
| 2-3/8" | 60 | #2 | 1.0-2.0 | |
| 2-5/8" | 65 | #2 | 1.0-2.0 | |
| 3" | 75 | #2 | 1.0-2.0 | |
