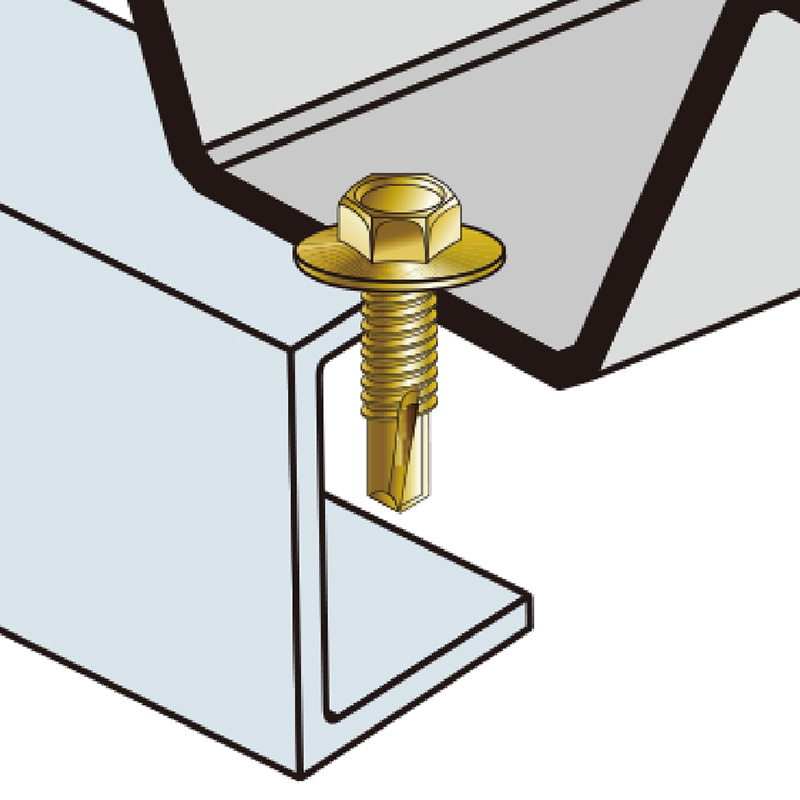

With its excellent drilling performance and hexagonal head design, this fastener can handle higher torque, enabling rapid penetration of materials. Its larger washer head enhances load distribution and is commonly used in construction and industrial projects for secure connections.
Applications
For medium duty purposeFeatures
Precise cutting edges to improve drill performance with less effort| Hex Washer Flange Self Drilling Screw | ||||
| Size | Length / inch | Length / mm | Drill Point m/m | Drill Capacity m/m |
| #12-14 M5.5 | 3/4" | 19 | #3 | 2.0-4.0 |
| 1" | 25 | #3 | 2.0-4.0 | |
| 1-3/8" | 35 | #3 | 2.0-4.0 | |
| 1-1/2" | 38 | #3 | 2.0-4.0 | |
| 1-3/4" | 45 | #3 | 2.0-4.0 | |
| 2" | 50 | #3 | 2.0-4.0 | |
| 2-3/16" | 55 | #3 | 2.0-4.0 | |
| 2-1/2" | 63 | #3 | 2.0-4.0 | |
| 3" | 75 | #3 | 2.0-4.0 | |
| 3-1/2" | 88 | #3 | 2.0-4.0 | |
| 4" | 100 | #3 | 2.0-4.0 | |
| 5" | 125 | #3 | 2.0-4.0 | |
